Some nice pictures of " the pioneer " & Tony

             Tony & his toys , the Pioneer and one nice custom made Indian scout  741 dispatch tow .
                                    More details about the build of the bikes on : http://www.indiantrading.co.uk

Indian 741 / 101 concept frame building

Indian scout 741 /101 frame assembly in special built Frame jig .









                                               asymmetry on frame for the generator drive





vineri, 13 septembrie 2013

indian scout 741/ 101 custom lug frame .

Assembly device for the frame neck lug using CAD engineering lasercutting and cnc metalbending .


 After some days of lugs building .

                                                  Jig  for the lug under the seat .





                                            beginning of the main frame assembly & welding jig

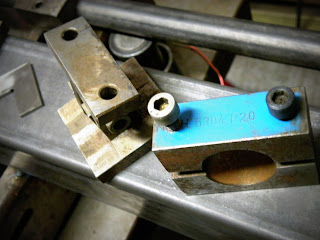

                                         For aligning everything in place i got a lot of help with the new tooling
.
                                         I did like the precision of the angle measuring tool . that is 0.01 Grad.
                                         it really takes a lot of time to build things really straight ,
                                           especially when something needs welding .!

                                           Lego style mounted frame , no welding , waiting for the frame jig to be ready ,                                           so everything can be welded in place precise & aligned
                                                                 Frame Jig alignment








                                                         lower lugs and frame end
